Introduction

• The JS7 - Identity Services provide integration with LDAP Directory Services for authentication and authorization.
• The LDAP Identity Service is a built-in service available from JOC Cockpit

Identity Service Type

The following integration levels are available from Identity Service Types that can be used with LDAP:

Explanation:

• Service Type: LDAP
  • Management of user accounts and passwords is performed by the LDAP Server.
  • In addition, an automated mapping of membership in LDAP Security Groups to the JOC Cockpit roles takes place.
  • The JOC Cockpit does not know any user accounts, passwords and role assignments as this information is managed by LDAP only.
• Service Type: LDAP-JOC
  • Management of user accounts and passwords is performed by the LDAP Server.
  • The assignment of roles to user accounts is performed by the JOC Cockpit and is stored in the JS7 database.
  • The JOC Cockpit knows user accounts and role assignments. The JOC Cockpit does not know passwords as this information is managed by LDAP only

Identity Service Configuration

The  icon in the JOC Cockpit main menu is used to select the Manage Identity Services page:

Add Identity Service

To add an Identity Service use the button Add Identity Service from the page above that lists the available Identity Services:

The remaining input fields for the popup window will look like this:

Explanation:

• The Identity Service Name is a unique identifier that can be freely chosen.
• The Identity Service Type can be selected as available from the matrix described above.
• The Ordering specifies the sequence in which a login is performed with available Identity Services.
• The Required attribute specifies whether a login with the relevant Identity Service is required to be successful, for example, if a number of Identity Services are triggered on login of a user account.
• The Identity Service Authentication Scheme allows selection of:

  • single-factor authentication: user account and password are specified for login with the LDAP Identity Service.
  • two-factor authentication: in addition to user account and password a Client Authentication Certificate is required, see the JS7 - Certificate based Authentication article for more information.

It is possible to add more than one LDAP Identity Service, for example if different LDAP servers are used or if user accounts and Security Groups are stored in different hierarchy levels with the LDAP server.

Identity Service Settings

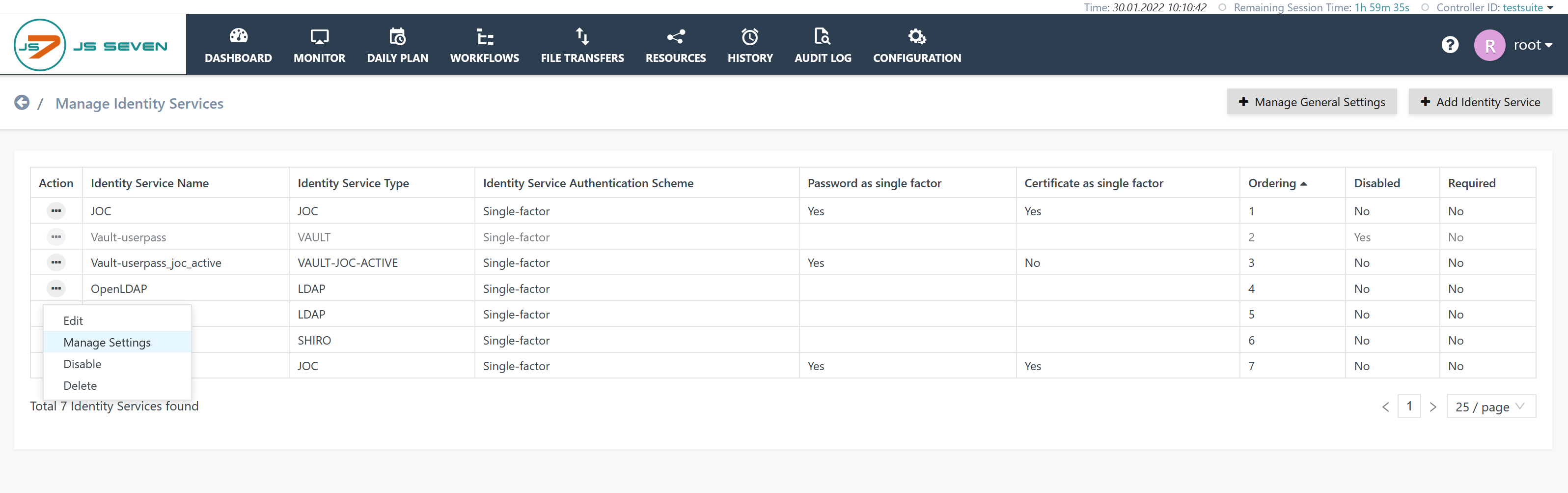

Having added an LDAP Identity Service it is necessary to add settings for the LDAP integration from the Identity Service's Manage Settings action menu item:

To use the LDAP Identity Service:

• the LDAP Server product has to be installed and has to be accessible for the JOC Cockpit,
• settings are required for configuration in a Simple Mode or Expert Mode.

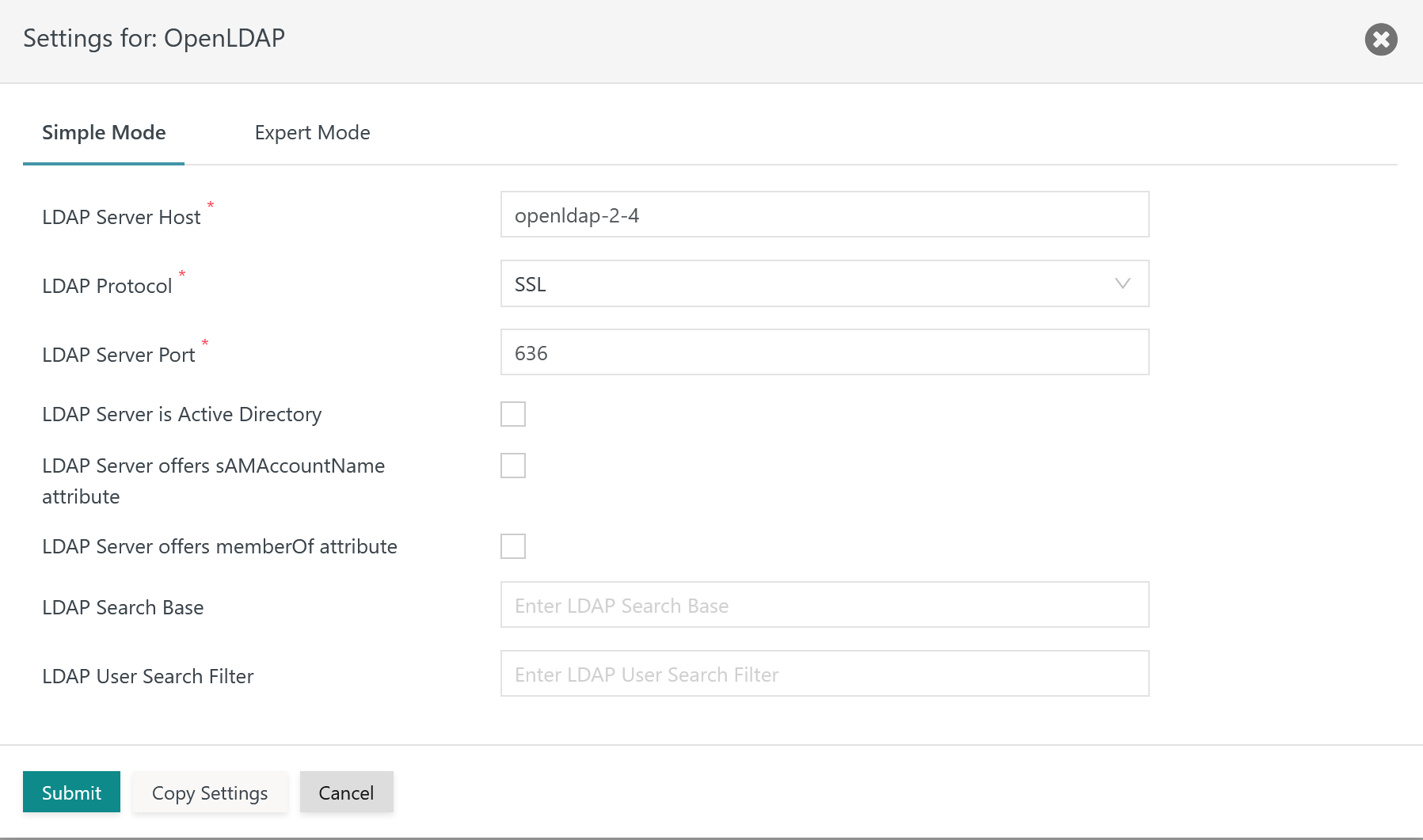

Simple Mode Configuration

This configuration mode is intended for users who are looking for authentication (not: authorization) with LDAP:

Explanation:

• LDAP Server Host: Expects the hostname or IP address of the LDAP Server host. If TLS/SSL protocols are used then the Fully Qualified Domain Name (FQDN) of the host has to be used for which the LDAP Server SSL certificate is issued.
• LDAP Protocol: The LDAP Protocol can be Plain Text, TLS or SSL. Plain Text is not recommended as the user account and password will be sent through the network without encryption. TLS and SSL protocols are considered being secure as they encrypt the content/connection to the LDAP Server.
• LDAP Server Port: The port that the LDAP Server is listening to. For Plain Text and TLS connections port 389 is frequently used, for SSL connections port 636 is a frequent option.
• LDAP Server is Active Directory: This setting simplifies the configuration if the LDAP Server is implemented by Active Directory. A number of attributes for user search and group search are automatically assumed if Active Directory is used.
• LDAP Server sAMAccountName attribute: The sAMAccountName attribute is the unique identifier of a user account. This attribute frequently is available with Active Directory LDAP Servers.
• LDAP Server memberOf attribute: The memberOf attribute simplifies the search for Security Groups for which the user account has membership. This attribute frequently is available with LDAP Servers of type Active Directory, however, other LDAP products similarly can implement the attribute.
• LDAP User DN Template: The Distinguished Name (DN) identifies a user account. The value {0} can be used for Active Directory LDAP Servers and will be replaced by the user account specified during login. Alternatively an LDAP query can be specified, for example uid={0},OU=Operations,O=IT,O=Users,DC=example,DC=com.
• LDAP Search Base: The Search Base for looking up user accounts in the hierarchy of LDAP Server entries, for example OU=Operations,O=IT,O=Users,DC=example,DC=com.
• LDAP User Search Filter: The User Search Filter specifies an LDAP query that is used to identify the user account in the hierarchy of LDAP entries.

Expert Mode Configuration

This configuration mode is intended for users who intend to use LDAP for authentication and authorization:

The remaining settings in this mode look like this:

Explanation:

• General
  • LDAP Server URL: The LDAP Server URL specifies the protocol, for example ldap:// for Plain Text and TLS connections, ldaps:// for SSL connections. The protocol is added the hostname (FQDN) and port of the LDAP Server.
  • LDAP Server Read Timeout specifies the duration in seconds for which JOC Cockpit will wait for LDAP Server responses when the connection is established.
  • LDAP Server Connect Timeout specifies the duration in seconds for which JOC Cockpit will wait for LDAP Server responses when establishing the connection.
  • LDAP Start TLS: This switch makes TLS the protocol for the connection to the LDAP Server.
  • LDAP Host Name Verification: This switch has to be active to verify if hostnames in the LDAP Server URL and in the LDAP Server certificate match.
  • LDAP Truststore Path: Should the LDAP Server be configured for TLS/SSL protocols then the indicated truststore must include an X.509 certificate specified for the Extended Key Usage of Server Authentication.
    • For connections to well known LDAP Identity Providers such as Azure® users should specify the path to the Java cacerts truststore file that ships with the Java JDK used with JOC Cockpit.
    • The truststore can include a Private CA-signed Certificate or a Public CA-signed Certificate. Typically the Root CA Certificate is used as otherwise the complete certificate chain involved in signing the Server Authentication Certificate has to be available with the truststore.
    • If the LDAP Server is operated for TLS/SSL connections and this setting is not specified then JOC Cockpit will use the truststore that is configured with the JETTY_BASE/resources/joc/joc.properties configuration file. This includes use of settings for the truststore password and truststore type.
    • The path to the truststore is specified relative to the JETTY_BASE/resources/joc directory. If the truststore is located in this directory then specify the file name only, typically with a .p12 extension. Other relative locations can be specified using e.g. ../../joc-truststore.p12 if the truststore is located in the JETTY_BASE directory. No absolute path can be specified and no path can be specified that is located before the JETTY_BASE directory in the file system hierarchy.
  • LDAP Truststore Password: If an LDAP truststore is used and the LDAP truststore is protected by a password, then the password has to be specified. If the Java JDK cacerts truststore is used, then the default password is changeit.
  • LDAP Truststore Type: If an LDAP truststore is used then the type of the indicated truststore has to be specified as being either PKCS12 or JKS (deprecated).
• Authentication
  • LDAP User DN Template: The Distinguished Name (DN) identifies a user account. The value {0} can be used for Active Directory LDAP Servers and will be replaced by the user account specified during login. Alternatively an LDAP query can be specified, for example uid={0},OU=Operations,O=IT,O=Users,DC=example,DC=com.
  • LDAP System User DN Template is applied if a System User Account is used to bind to the LDAP Server and to verify if the user account performing login exists with the given account and password. Use of a System User Account is discouraged as it exposes the account's password. The setting is similar to the LDAP User DN Template and specifies the placeholder for the System User Account's Distinguished Name.
  • LDAP System User Account specifies the user account similar to login from the samAccountName or other attribute, for example using account@domain.
  • LDAP System User Password specifies the System User Account's password.
• Authorization
  • LDAP Search Base: The Search Base for looking up user accounts in the hierarchy of LDAP Server entries, for example OU=Operations,O=IT,O=Users,DC=example,DC=com.
  • LDAP Group Search Base: Similarly to the Search Base the Group Search Base is used to look up Security Groups which a user account has membership of.
  • LDAP Group Search Filter: This filter specifies an LDAP query which is used to identify Security Groups the user account is a member of. The filter is applied to search results provided starting from the Group Search Base.
  • LDAP User Search Filter: This filter specifies an LDAP query that is used to identify the user account in the hierarchy of LDAP entries.
  • LDAP Group Name Attribute: Specifies the name of the attribute that provides the name of the Security Group that a user account is a member of, for example the CN (Common Name) attribute.
  • LDAP User Name Attribute: This attribute provides the name of the user account, frequently the CN (Common Name) attribute is used.
• Group/Roles Mapping
  • Disable nested group search specifies that Security Groups will not be looked up recursively if they are members of Security Groups.
  • The LDAP Group/Roles Mapping is a mapping of Security Groups which the user account is a member of and JS7 roles. Security Groups have to be specified depending on the LDAP Group Search Attribute as Distinguished Names, e.g. CN=js7_admins,OU=Operations,O=IT,O=Groups,DC=example,DC=com, or as Common Names, e.g. js7_admins.

Identity Service Configuration Details

The following articles provide detailed information about configuration of an LDAP Identity Service:

• JS7 - LDAP Identity Service Configuration
• JS7 - LDAP over TLS using STARTTLS and LDAP over SSL using LDAPS

Logging

• Log Files
  • See JS7 - Log Files and Locations
• Standard Log Files
  • Identity Services log output to the JETTY_BASE/logs/joc.log file. This includes reporting success or failure of authentication.
  • Successful and failed authentication attempts including the user accounts involved are logged to the JETTY_BASE/logs/audit.log file.
• Debug Log Files
  • For problem analysis during the setup of an Identity Service, increase the log level as explained in the JS7 - Log Levels and Debug Options article.
  • The JETTY_BASE/logs/joc-debug.log file includes general debug output of JOC Cockpit.
  • The JETTY_BASE/logs/authentication-debug.log file includes debug output related to authentication and authorization.
  • The JETTY_BASE/logs/jetty.log file includes debug output of attempts to establish SSL connections.
