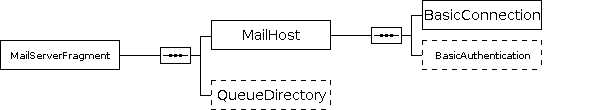

Diagram

Elements

MailServerFragment
References Notes

This element includes the parameters for e-mail servers that are used to send notifications.

Any number of fragments can be configured and are distinguished by YADE according to their name attribute.

A fragment is referenced by a transfer profile using the value of the MailServerFragmentRef ref attribute.

name

This attribute identifies the current fragment. Any number of fragments can be used and are distinguished by YADE according their name.

A fragment is referenced by a transfer profile using the value of this attribute.

Element Type Required Description
Attribute: name NMTOKEN
Required

This attribute identifies the current fragment. Any number of fragments can be used and are distinguished by YADE according their name.

A fragment is referenced by a transfer profile using the value of this attribute.

MailHost
  • Occurrence: 1
Required

This parameter specifies a mail host setiings.

BasicConnection [BasicConnectionType]
  • Occurrence: 1
Required
References Notes

A connection specifies parameters for a Hostname and a Port to which a connection is established.

BasicAuthentication [BasicAuthenticationType]
  • Occurrence: 0..1
Optional
References Notes

The BasicAuthentication element specifies the credentials for authentication with a server, e.g. using an FTP protocol or a Proxy Protocol. Child elements include:

  • Account for authentication. For Windows Systems an account could include the domain.
  • Password for authentication. Passwords are not displayed in the YADE log files.

BasicAuthentication is available for a number of File Transfer Protocols and Proxy Protocols. The drawback with BasicAuthentication is that passwords are stored directly in configuration files. In order to avoid this you could switch to using File Transfer Protocols that allow SSHAuthentication, e.g. SFTP.

QueueDirectory string
  • Min: 1
  • Whitespace: preserve
  • Occurrence: 0..1
Optional
References Notes

This parameter specifies the e-mail queue directory. E-mails which cannot be transferred due to temporary connection errors will be stored in this directory. The JobScheduler will later retry to send these e-mails.
