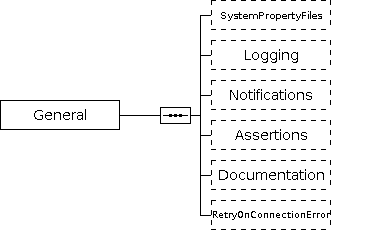

Diagram

Elements

General
References Notes

The General configuration options refer to central settings that are applied to all file transfer configuratons such as use of the YADE Background Service and logging.

Some settings from the General branch can be superseeded by Profile settings that apply to an individual file transfer configuration.

The specification of General configuration parameters is not mandatory.

Element Type Required Description
SystemPropertyFiles [SystemPropertyFilesType]
  • Occurrence: 0..1
Optional
References Notes

YADE allows to specify Java property files at a global level and individually per transfer fragment.

  • Properties from Java property files are applied as system properties by YADE.
  • Java property files are processed in the specified sequence. Properties that have previously been set will be overwritten by subsquent Java property files.
  • First the global Java property files are applied, next the Java property files specified for a transfer fragment are applied.
Logging [LoggingType]
  • Occurrence: 0..1
Optional
References Notes

YADE uses the log4j framework for logging and makes use of the following loggers:

  • rootLogger
  • reportLogger
where the output of the reportLogger is more compact than the rootLogger output.

These loggers are configured by a log4j.properties file which determines that the

  • rootLogger logs to stdout.
  • reportLogger optionally logs to a file.

If the log4j.properties file is not found then a log4j base configuration is used which logs to stdout.

Notifications [NotificationType]
  • Occurrence: 0..1
Optional
References Notes

Notifications can be sent by e-mail or by use of the YADE Background Service. The Notifications element allows included elements to reference NotificationFragments such as a MailServerFragment or a BackgroundServiceFragment.

Notifications can be added either at Profile level or at General level:

  • Profile: a specific mail server or Background Service is used for notifications of file transfers from this profile.
  • General: one mail server or Background Service is used for notifications from all Profiles.
The more sppecific notification settings from a Profile are used if available. Otherwise the General settings are applied.
Assertions [AssertionType]
  • Occurrence: 0..1
Optional
References Notes

This element does not specify parameters for file transfers but assertions regarding the performance of file transfers. Assertions specify performance indicators that can be checked by a test suite.

Documentation [DocumentationType]
  • Occurrence: 0..1
Optional
References Notes

A Documentation can be added to a file transfer configuration that includes a description and a number of links.

The Documentation can be added either at Profile level or at General level:

  • Profile: a specific documentation is used for file transfers from this profile.
  • General: a general documentation is used for file transfers from all Profiles.
The more sppecific Documentation settings from a Profile are used if available. Otherwise the General settings are applied.
