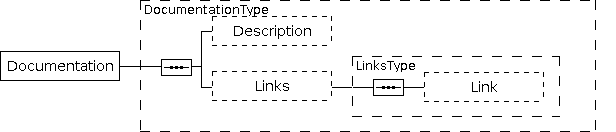

Diagram

Elements

Documentation - DocumentationType
References Notes

A Documentation can be added to a file transfer configuration that includes a description and a number of links.

The Documentation can be added either at Profile level or at General level:

  • Profile: a specific documentation is used for file transfers from this profile.
  • General: a general documentation is used for file transfers from all Profiles.
The more sppecific Documentation settings from a Profile are used if available. Otherwise the General settings are applied.
Element Type Required Description
Description string
  • Min: 1
  • Whitespace: preserve
  • Occurrence: 0..1
Optional

A Description can be added to a Documentation that explains the use of the file transfer configuration.

Descriptions include plain text, i.e. no formatting is applied.

Links [LinksType]
  • Occurrence: 0..1
Optional

A number of Links can be added to a Documentation that explains the use of the file transfer configuration.

LinksType / Link
  • Occurrence: 0..unbounded
Optional

A number of Links can be added to a Documentation that explains the use of the file transfer configuration.

A Link is specified by its text and href attribute that points to the URI that is referenced by the Link.

href

A number of Links can be added to a Documentation that explains the use of the file transfer configuration.

A Link is specified by its text and href attribute that points to the URI that is referenced by the Link.
