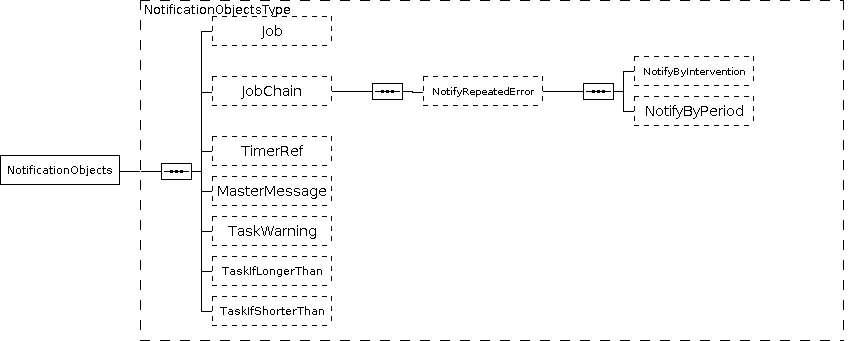

Diagram

Elements

NotificationObjects - NotificationObjectsType
References Notes

Specifies the objects that are being used for messages: Job, JobChains, Timers, MasterMessage, TaskWarning, TaskIfLongerThan, TaskIfShorterThan.

  • Notifications can be restricted to certain jobs or job chains for which messages are forwarded to a specific System Monitor or System Monitor service.
  • TimerRef includes checks that verify if a certain threshold has been exceeded by a minimum or maximum value. Such checks can include to verify the duration of a job chain or specific values that are reported by jobs.
  • MasterMessage includes problems detected by a JobScheduler Master, e.g. database connection lost.
  • TaskWarning includes job execution warning messages.
  • TaskIfLongerThan includes the feature to send notification in case that the execution of job requires a longer duration than expected.
  • TaskIfShorterThan includes the feature to send notification in case that the execution of job requires a shorter duration than expected.
Element Type Required Description
Job
  • Occurrence: 0..unbounded
Optional
References Notes

Specifies the order-controlled or standalone jobs for which notifications are being sent to a system monitor.
The element can be repeatedly used to specifiy a number of job.
Support for standalone jobs starting with the release 1.11.5.

Attributes:

  • name - accepts a regular expression to specify a number of jobs that match the given pattern, e.g. jobs that are located in the same root folder.
  • notifications - specifies the number of transfers the same notification to a System Monitor. By default one notification only will be sent.
  • scheduler_id - restricts notifications to the JobScheduler instance with the given identification. By default notifications will be sent for all JobScheduler instances that log into the same database.
  • return_code_from - restricts notifications for jobs for a particular return code range.
  • return_code_to - restricts notifications for jobs for a particular return code range.
name
Job name including possible folder names. Java regular expression can be used.
notifications
Specifies the number of transfers the same notification to a System Monitor. By default one notification only will be sent.
scheduler_id
Notifications are restricted to the JobScheduler instance with the given identification. By default notifications will be sent for all JobScheduler instances that would log into the same database. Java regular expression can be used.
return_code_from
Restricts notifications for jobs for a particular return code range.
return_code_to
Restricts notifications for jobs for a particular return code range.
JobChain
  • Occurrence: 0..unbounded
Optional
References Notes

Specifies the job chains for which notifications are being sent to a system monitor.

The element can be repeatedly used to specifiy a number of job chains.

Default behaviour for repeatedly failed job chain steps: when an error reoccurrs in the same job node for which a notification has already been sent then this order state is considered being previously notified and no new notification will be sent.

See child element NotifyRepeatedError

Attributes:

  • name - accepts a regular expression to specify a number of job chains that match the given pattern, e.g. job chains that are located in the same root folder.
  • notifications - specifies the number of transfers the same notification to a System Monitor.
  • scheduler_id - restricts notifications to the JobScheduler instance with the given identification. By default notifications will be sent for all JobScheduler instances that log into the same database.
  • return_code_from - restricts notifications for jobs for a particular return code range.
  • return_code_to - restricts notifications for jobs for a particular return code range.
  • step_from - restricts notifications for job chains to a sequence of job nodes that are specified with the step_from and step_to attributes.
  • step_to - restricts notifications for job chains to a sequence of job nodes that are specified with the step_from and step_to attributes.
  • excluded_steps - specifies the steps which will be excluded from notifications. Multiple entries are separated by semicolon.

Child elements:

  • NotifyRepeatedError - send notifications for all errors that occur, do not suppress errors for repeatedly failed executions.
name
Job chain name including possible folder names. Java regular expression can be used.
notifications
Specifies the number of transfers the same notification to a System Monitor. By default one notification only will be sent.
scheduler_id
Notifications are restricted to the JobScheduler instance with the given identification. By default notifications will be sent for all JobScheduler instances that would log into the same database. Java regular expression can be used.
return_code_from
Restricts notifications for job chains for a particular return code range.
return_code_to
Restricts notifications for job chains for a particular return code range.
step_from
Restricts notifications for job chains to a sequence of job nodes that are specified with the step_from and step_to attributes.
step_to
Restricts notifications for job chains to a sequence of job nodes that are specified with the step_from and step_to attributes.
excluded_steps
Specifies the steps which will be excluded from the analyzing (separated by semicolon).
NotifyRepeatedError
  • Occurrence: 0..1
Optional
References Notes

Send notifications for all errors that occur, do not suppress errors for repeatedly failed executions.

NotifyByIntervention
  • Occurrence: 0..1
Optional
References Notes

Send notifications for errors that occur due to repeated failed executions if the restart was caused by manual intervention.

NotifyByPeriod
  • Occurrence: 0..1
Optional
References Notes

Send notifications for errors that occur due to repeatedly failed executions if a configurable period of time is exceeded.

Attributes:

  • period - the period between notifications is calculated from the time of the last failed execution for which a notification has been sent and the time of the current failed execution.
    Possible values:
    • <n> - duration in seconds, e.g.: 60
    • <n>m - duration in minutes, e.g.: 30m
    • <n>h - duration in hours, e.g.: 24h
    • <n>d - duration in days, e.g.: 30d
    • <n>w - duration in weeks, e.g.: 4w

    Combined values (with blank as separator):

    • e.g.: 2h 30m 30s
period

Possible values:

  • <n> - duration in seconds, e.g.: 60
  • <n>m - duration in minutes, e.g.: 30m
  • <n>h - duration in hours, e.g.: 24h
  • <n>d - duration in days, e.g.: 30d
  • <n>w - duration in weeks, e.g.: 4w

Combined values (with blank as separator):

  • e.g.: 2h 30m 30s
TimerRef
  • Occurrence: 0..unbounded
Optional
References Notes

Corresponds with Timer setting defined in the SystemMonitorNotification / Timer element.
The element can be repeatedly used to specifiy a number of timers.

Attributes:

  • ref - corresponds with Timer name setting defined in the SystemMonitorNotification / Timer element.
  • notifications - specifies the number of transfers the same notification to a System Monitor.
  • notify_on_error - send timer check notification when the configured job chain contains the error notifications.
ref
Corresponds with Timer name setting defined in the SystemMonitorNotification / Timer element.
notifications
Specifies the number of transfers the same notification to a System Monitor. By default one notification only will be sent.
notify_on_error
Send timer check notification when the configured job chain contains the error notifications.
MasterMessage
  • Occurrence: 0..1
Optional
References Notes

MasterMessage includes problems detected by a JobScheduler Master, e.g. database connection lost.

Requirements:

  • ./config/factory.ini configuration file:
    • mail_queue_only=true
    • mail_queue_dir setting specifies a directory to store the JobScheduler mails
    • mail_on_warning=true
    • mail_on_error=true
Attributes:
  • scheduler_id - restricts notifications to the JobScheduler instance with the given identification. By default notifications will be sent for all JobScheduler instances that log into the same database.
  • notifications - specifies the number of transfers the same notification to a System Monitor. By default one notification only will be sent.
scheduler_id
Notifications are restricted to the JobScheduler instance with the given identification. By default notifications will be sent for all JobScheduler instances that would log into the same database. Java regular expression can be used.
notifications
Specifies the number of transfers the same notification to a System Monitor. By default one notification only will be sent.
TaskWarning
  • Occurrence: 0..1
Optional
References Notes

TaskWarning includes job execution warning messages.

Requirements:

  • ./config/factory.ini configuration file:
    • mail_queue_only=true
    • mail_queue_dir setting specifies a directory to store the JobScheduler mails
    • mail_on_warning=true
Attributes:
  • scheduler_id - restricts notifications to the JobScheduler instance with the given identification. By default notifications will be sent for all JobScheduler instances that log into the same database.
  • notifications - specifies the number of transfers the same notification to a System Monitor. By default one notification only will be sent.
scheduler_id
Notifications are restricted to the JobScheduler instance with the given identification. By default notifications will be sent for all JobScheduler instances that would log into the same database. Java regular expression can be used.
notifications
Specifies the number of transfers the same notification to a System Monitor. By default one notification only will be sent.
TaskIfLongerThan
  • Occurrence: 0..1
Optional
References Notes

TaskIfLongerThan includes the feature to send notification in case that the execution of job requires a longer duration than expected.

Requirements:

  • The Job configuration contains the warn_if_longer_than setting.
  • ./config/factory.ini configuration file:
    • mail_queue_only=true
    • mail_queue_dir setting specifies a directory to store the JobScheduler mails
    • mail_on_warning=true
Attributes:
  • scheduler_id - restricts notifications to the JobScheduler instance with the given identification. By default notifications will be sent for all JobScheduler instances that log into the same database.
  • notifications - specifies the number of transfers the same notification to a System Monitor. By default one notification only will be sent.
scheduler_id
Notifications are restricted to the JobScheduler instance with the given identification. By default notifications will be sent for all JobScheduler instances that would log into the same database. Java regular expression can be used.
notifications
Specifies the number of transfers the same notification to a System Monitor. By default one notification only will be sent.
TaskIfShorterThan
  • Occurrence: 0..1
Optional
References Notes

TaskIfShorterThan includes the feature to send notification in case that the execution of job requires a shorter duration than expected.

Requirements:

  • The Job configuration contains the warn_if_shorter_than setting.
  • ./config/factory.ini configuration file:
    • mail_queue_only=true
    • mail_queue_dir setting specifies a directory to store the JobScheduler mails
    • mail_on_warning=true
Attributes:
  • scheduler_id - restricts notifications to the JobScheduler instance with the given identification. By default notifications will be sent for all JobScheduler instances that log into the same database.
  • notifications - specifies the number of transfers the same notification to a System Monitor. By default one notification only will be sent.
scheduler_id
Notifications are restricted to the JobScheduler instance with the given identification. By default notifications will be sent for all JobScheduler instances that would log into the same database. Java regular expression can be used.
notifications
Specifies the number of transfers the same notification to a System Monitor. By default one notification only will be sent.
